MTK SP Flash Tool Windows v5.1452.00 Official Download

MTK SP Flash Tool Windows v5.1452.00 Official Download
What's needed:
USB data cable
MediaTek USB VCOM drivers
SP Flash Tool ( Latest version SP_Flash_Tool_v3.1224.01)
SP Flash Tool Windows
First of all, make sure that you have MediaTek DA USB VCOM drivers installed.
how to use mtk flash tool 01
How to use MTK Smartphones Flash Tool Tutorial Here!
Flashing the whole ROM

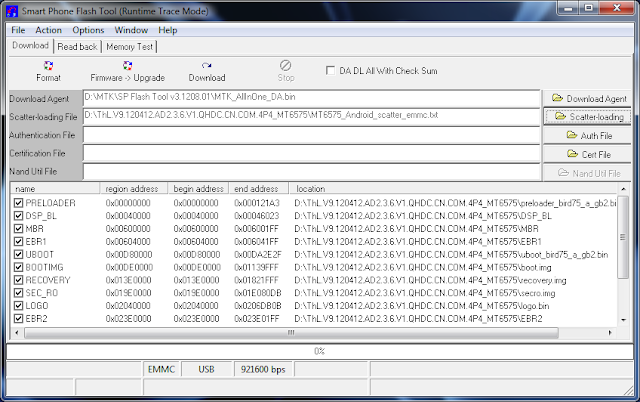

First of all open SP Flash Tool, then click Scatter-loading button to load the correct scatter file
(MT6575_Android_scatter_emmc.txt or MT6577_Android_scatter_emmc.txt, depending on which phone you have) for your device and ignore any message that may appear.

how to use mtk flash tool 02
Turn off your phone, remove the battery and replace it after some seconds (and don't turn on the phone).
Press F9 (or hit Download button) and connect your phone into the computer via USB data cable.

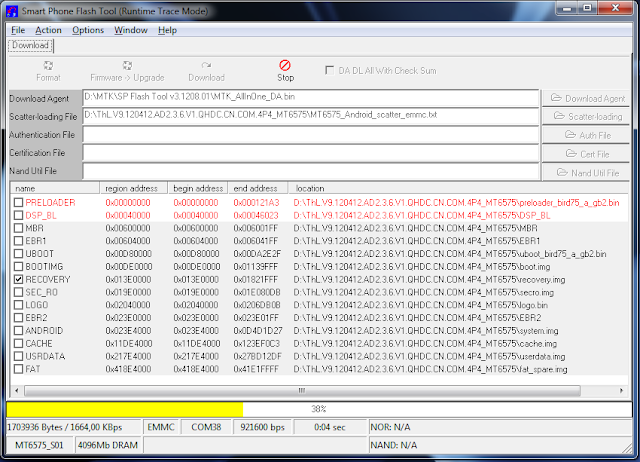

The process will start and a red progress bar will appear.
how to use mtk flash tool 03
how to use mtk flash tool 04
After the red progress bar is complete, there will appear a purple progress bar.
how to use mtk flash tool 05
Right after the purple progress bar is complete, a message will appear underneath it:
“Please insert USB cable in x seconds” and then the download will start right away (you will see the yellow progress bar filling up).
how to use mtk flash tool 06
When the yellow bar is complete, you'll get a popup with a green circle and Download OK message,
which means that the process has been successfully terminated.
how to use mtk flash tool 07
You can now safely disconnect your phone and turn it on. The process ends here.
Flashing only part of the ROM
In case you want to flash just one part of the ROM, that is also possible. In the shown example, only recovery image will be flashed.
Deselect all parts except the one(s) you want to flash and then press F9 (or hit Download button).
how to use mtk flash tool 08
The tool will immediately show a warning because not all parts are selected, but you should continue anyway. Safely pressYes to continue.
how to use mtk flash tool 09
The download of the chosen partition image will start and after the yellow bar is complete, the popup with the green circle should appear.
how to use mtk flash tool 10
how to use mtk flash tool 11
Latest SP Flash Tool v5.1452.00
Support:- New android chip models MT6595/6752/6753/6735/8173/2601
MTK SP flash tool latest version 2015 Download
Please note that, even though it isn't mandatory to select it on the list of images to flash,
preloader file must be present in the same folder as the other partition(s) that you want to flash, or else phone will not be able to enter into download mode.
Attention: Please follow the instructions carefully. I will not take any responsibility on whatever may happen with your phone.
Very important warning: Always make sure that you trust the sources of the ROM you download and know that it is meant for your phone.
After flashing a wrong preloader, your phone will be completely dead (can't be powered on, it will not charge and won't be detected anymore by the computer) and there is no way to recover it.
Please note:
All picture are old tools screen short new tools themes is change i hope all of you try to understand
